Air purifiers

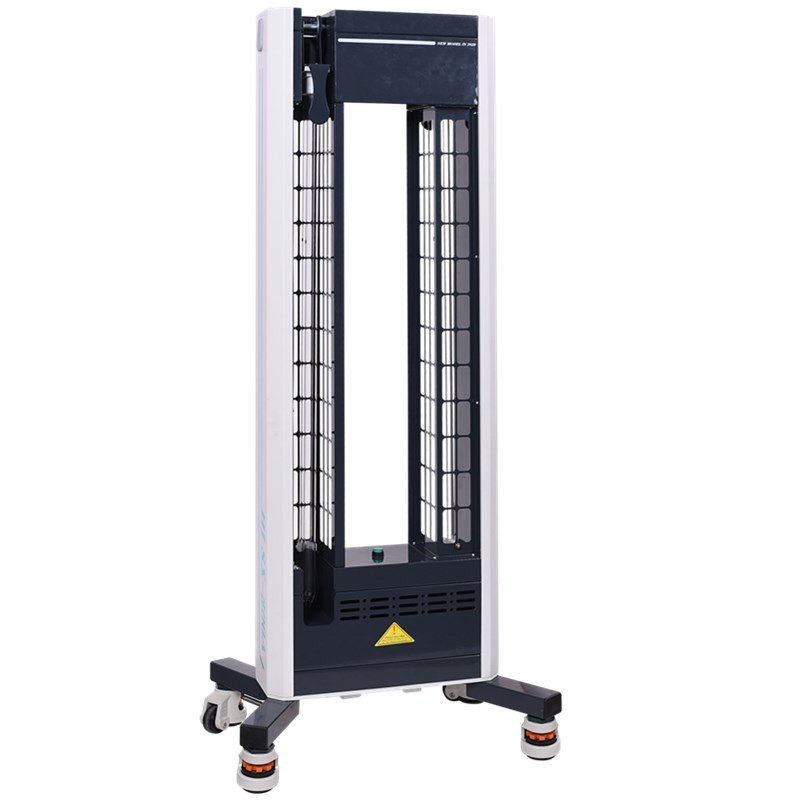

SX-300A UV - disinfection-car
Features
- Applicable room area: disinfection area of 100m2
- Power supply: AC 220V±22V.
- Power frequency: 50Hz ± 1Hz.
- Input power: 300W.
- Dimensions: 37*14*110.5cm.
- Operation mode: remote control, hand control, WIFI control
- The outer surface should be smooth and clean, without edges, burrs, cracks and other defects. Spray parts bright, uniform color, no shedding, hanging, scratch phenomenon. The text sign is clear and accurate, and the control keys should be sensitive and reliable.
- Wireless remote control of disinfector should be able to open/close the effective distance of wireless remote control 30M.
- Time to choose: use the remote control which can be controlled by the fixed time 30 min / 60 min / 90 min / 120 min / 150 min, sterilization time according to user needs to choose. The mobile phone APP can disinfect the specific working hours of the car on a regular basis as needed.
- Switch indicator light: under the condition of remote control without WIFI, you can press this button to control the opening and closing functions of the disinfection car.
- Ambient temperature: 5℃~40℃.
- Relative humidity: ≤85%.
- Atmospheric pressure: 86KPa ~ 106KPa.
- UV lamp life ≥5000h.
- The lamp type: ZW150D19W-U, amalgam.
- Product safety classification is Ⅰ class.
- > 932 uW /cm2 is measured at 1 m from the lamp tube. (Provide the inspection report of the authority)
- Obtained the national design patent, patent number: 202030375074.X

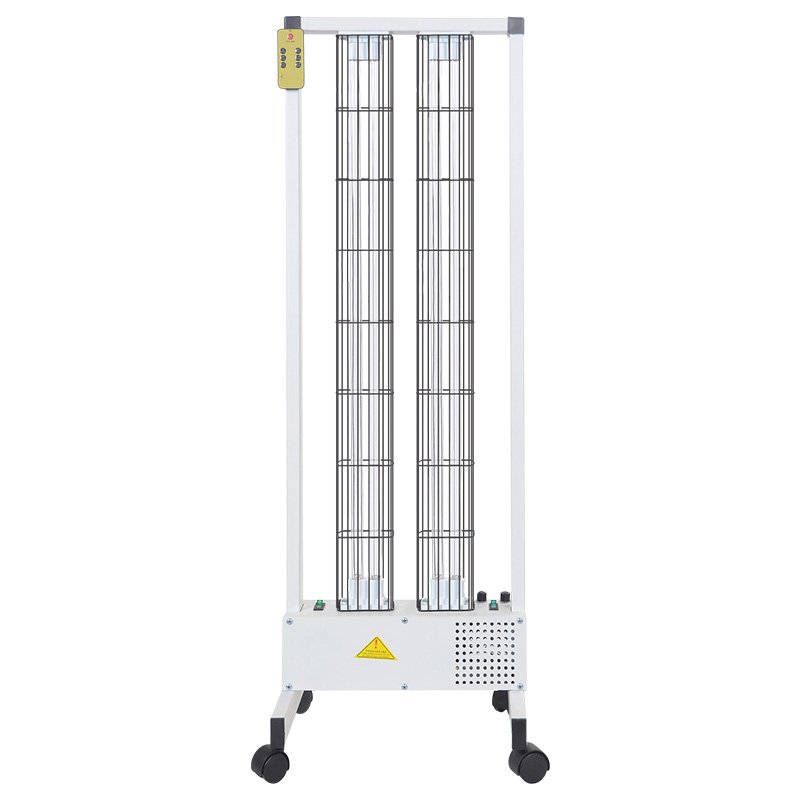

SX-300 UV
Product Parameters
- Model: SX – 300
- Product Name: Ultraviolet Disinfection Car
- Power Supply Voltage AC: 220V and 22V
- Power Supply Frequency: 50Hz ± 1Hz
- Input Power: 300VA
- Ambient Temperature: 5°C to 40°C
- Relative Humidity: 80%

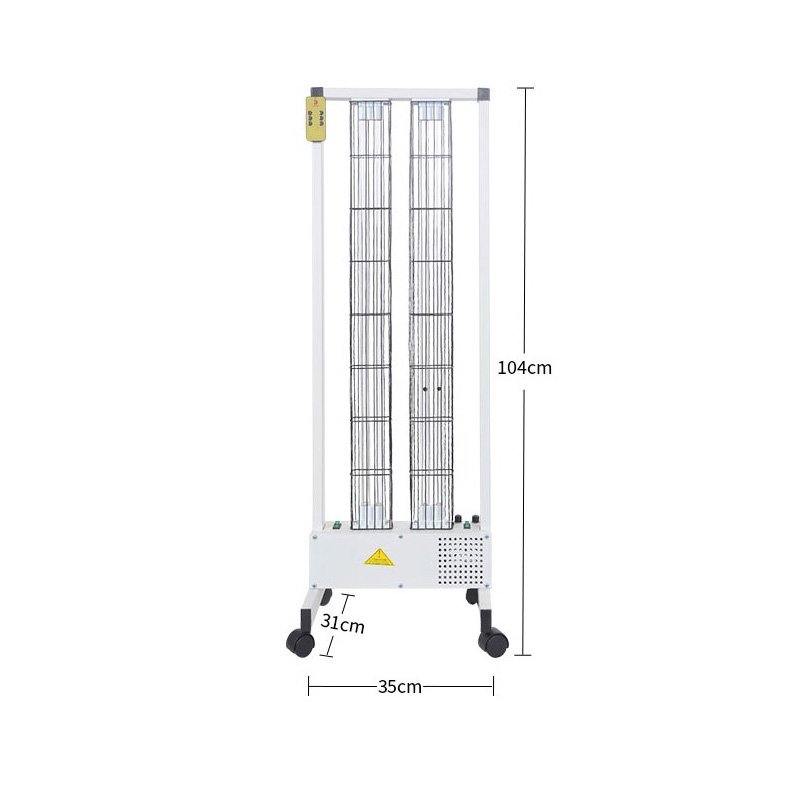

- Dimensions: 35 × 31 × 104 cm
- Power Cord Length: 2M
- Applicable Area: ≤100m²
- Warranty: 1 year
- Atmospheric Pressure: 86 kPa ~ 106 kPa
- Type of Lamp: ZW150D19W
- Disinfection Lamps Compliance: Complies with the provisions of GB19258
- Disinfection Time Automatic Range:
- 30 minutes
- 60 minutes
- 90 minutes
- 120 minutes
- 150 minutes
- Operation Mode: Remote control timing

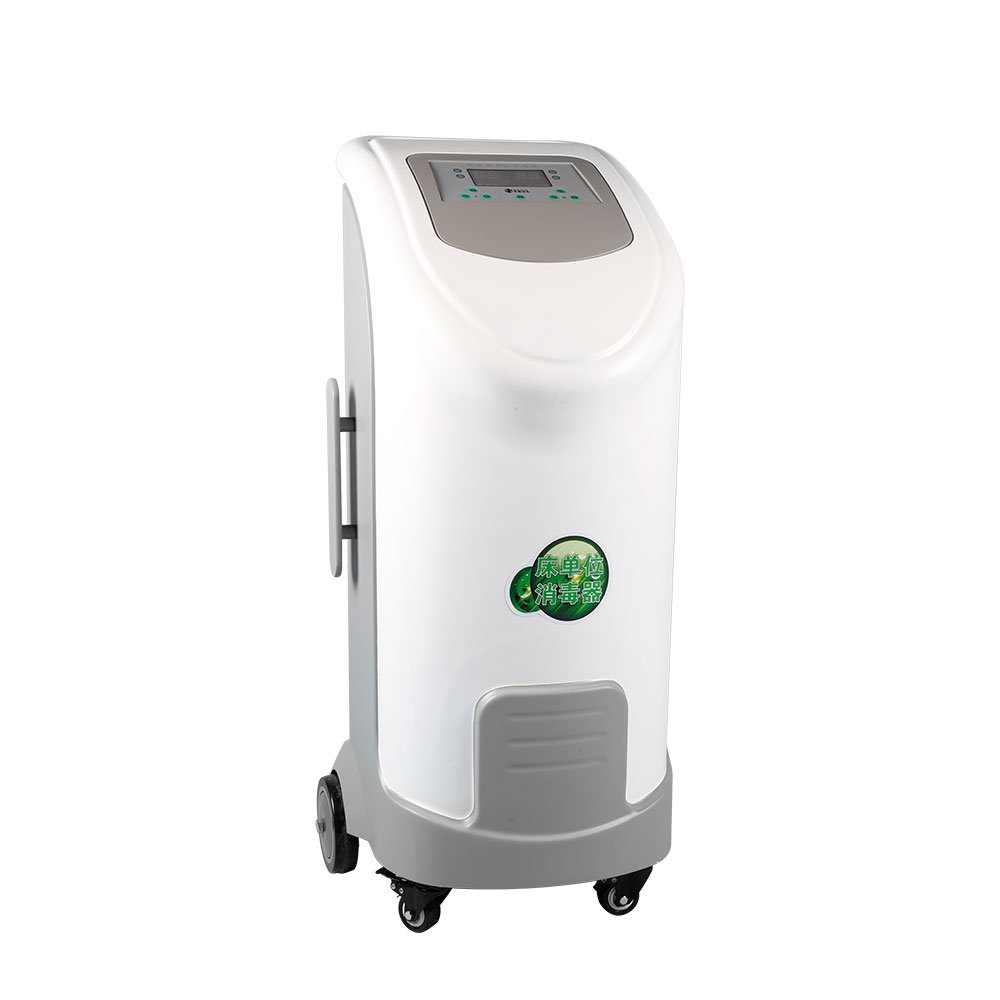

Bed Unit Disinfector SX-1
Features
- Beautiful appearance, easy to move
- The machine has vacuum function, can make the ozone completely penetrate into the bedding interior, disinfection is more thorough, no dead Angle;
- Special ozone generator ozone concentration is high, long life, strong disinfection ability;
- Adopt new ozone resolution technology, after the disinfection of ozone resolution, no residual, safe and reliable;
- Two beds can be disinfected at the same time to fully improve the utilization rate of beds;
- Disinfection process automatic intelligent control, can also be manually operated, can be in any state for each process time setting, easy to operate;
- Timing time can be set and remembered according to need, easy to operate;
- The ozone generator will automatically alarm and stop for protection when no ozone is produced.
- The product is mainly used for disinfecting bedding, pillow, mattress, bath towel and clothes in hospitals, hotels and families. It can also be used as a high concentration ozone generator.
| Model | Power Supply | Input Power | Ozone Concentration | External Dimension (cm) | Output Pressure | Time / Optional |
|---|---|---|---|---|---|---|
| SX – I | 220V and 50Hz | ≤380W | ≥800mg/m3 | 46 × 47 × 93 cm | 20KPa | 1-99min |
- Beautiful appearance, easy to move
- The machine has vacuum function, can make the ozone completely penetrate into the bedding interior, disinfection is more thorough, no dead Angle;
- Special ozone generator ozone concentration is high, long life, strong disinfection ability;
- Adopt new ozone resolution technology, after the disinfection of ozone resolution, no residual, safe and reliable;

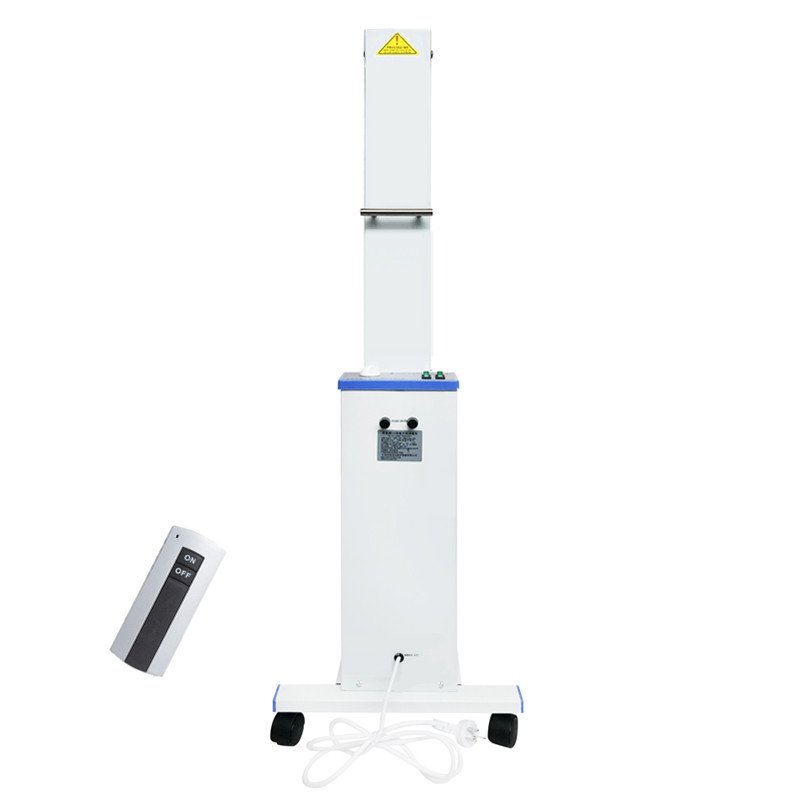

Disinfection car remote contro
Features
- Power supply voltage: 220V±10% 50Hz
- Ultraviolet lamp power: 30W x 2
- Ultraviolet wavelength of radiation: 253.7nm
- Ultraviolet radiation: single tube ≥ 107U W/cm2, double tube ≥ 214U W/cm2
- Ballast: Inductive ballast
- Warranty: 1 year
- The lamp can be adjusted Angle: 0-180 degrees
- Disinfection time control range: 0-120 minutes to use
- Universal wheel X4 with 360-degree wheels
- Light car height: 108cm
- Length of lamp arm: 100cm
- The length of the tube is 89.4cm
- Box material: tin spray plastic
- 30 meters through the wall remote control

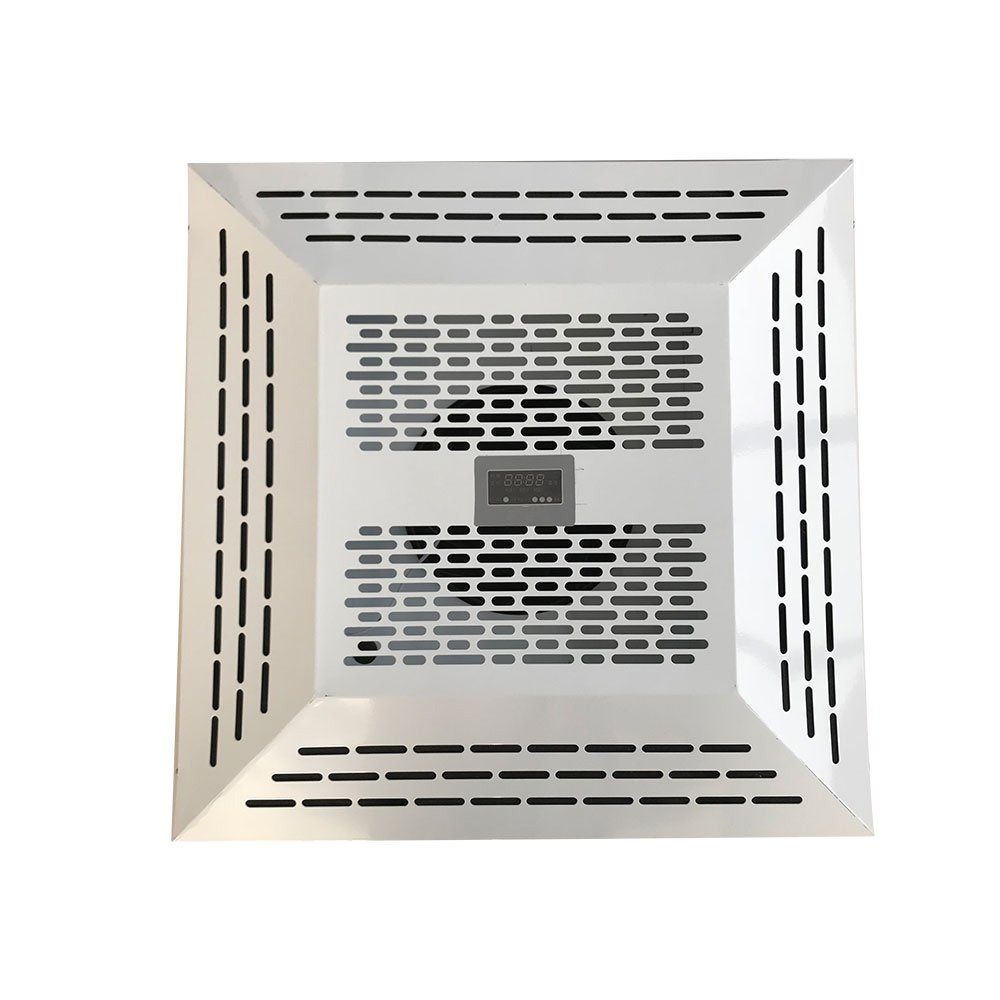

Embedded ultraviolet dynamic air sterilizer
Features
- Continuous disinfection can be done in the presence of human beings;
- Long life, high intensity ultraviolet sterilization;
- Large air output, long service life;
- Activated carbon primary filtration;
- Wind speed (high, medium, low) adjustable, wind direction multi-circulation;
- Microcomputer program controlled automatic operation;
- UV lamp failure automatic monitoring;
- Working hours automatically tired;
- Far infrared remote control operation.
| Model | Circulating Air Volume (M³/h) | Applicable Volume (m³) | Input Power (W) | High Efficiency Filtration | Program Control | Remote Control | Installation Method | Product Size (cm) |
|---|---|---|---|---|---|---|---|---|
| SK-X150 new | ≥1200 | ≤150 | ≤530 | Have | Have | Have | Embedded | 64 × 64 × 33 |
| SK-X150 | ≥1200 | ≤150 | ≤530 | Have | Have | Have | Embedded | 65 × 65 × 32 |

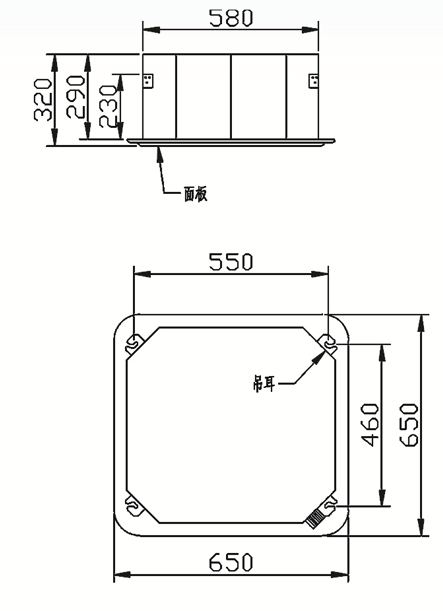

Note
- The main body thickness is 270mm
- Panel width 650mm
- Ceiling opening size 610-630mm
- Hook spacing 410mm
- Distance from hook to ceiling 154-159mm
- Disinfection effect ( cfu/ m3) ≤200
- UV leakage outside the machine ( μw/cm2 2 ) ≤0
- UV leakage inside the machine ( μw/cm 2 ) ≥13800
- The amount of ozone in the air during disinfection ( mg/m 3 ) ≤0
- Lamp life (h) ≥5000
- Negative oxygen ion release (pieces /m 3 ) ≥6*10 6
- Power supply 220V-240V/50Hz
- Noise db(A) ≤55

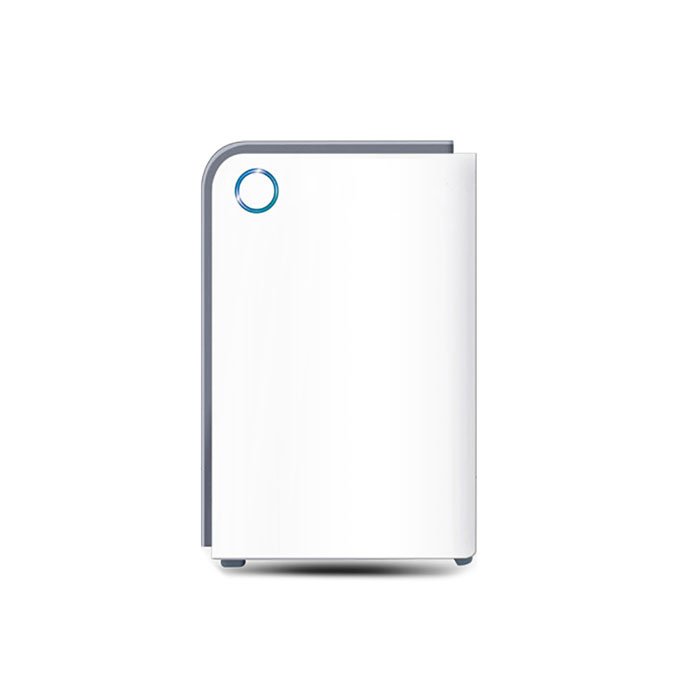

New air purifiers
- Nano photocatalyst air disinfection purifier, is through the special light source and nano photocatalyst chip reaction principle;
- After installation, it will not produce any pollution to the environment and human body, and can achieve man-machine coexistence and efficient disinfection.
- The built-in air filtration system of the disinfector uses the physical filtration method of laminar flow cleaning technology to remove dust and bacteria from the air;
Features
- German technology and imported motor;
- Sleep mode, intelligent light sensing;
- Negative oxygen ion, decompression and refreshing;
- Five-fold filtration, medical grade nano-photonic tube sterilization;
- Real-time display of PM2.5 (alveolar inhalation);
- Touch control design, full intelligent automatic purification;
- Super silent, like leaves/breath.
| Model | Circulating Air Volume (M3/H) | Applicable Area (M2) | Input Power (W) | Product Size (mm) | Purification Efficiency | In Addition to PM2.5 | In Addition to Formaldehyde | In Addition to TVOC | Sterilization |
|---|---|---|---|---|---|---|---|---|---|
| SK-J | ≥370 | 40 | 55 | 402 × 186 × 624 | A | ≥99.8% | ≥98% | ≥98% | ≥80% |
