Water Serializers

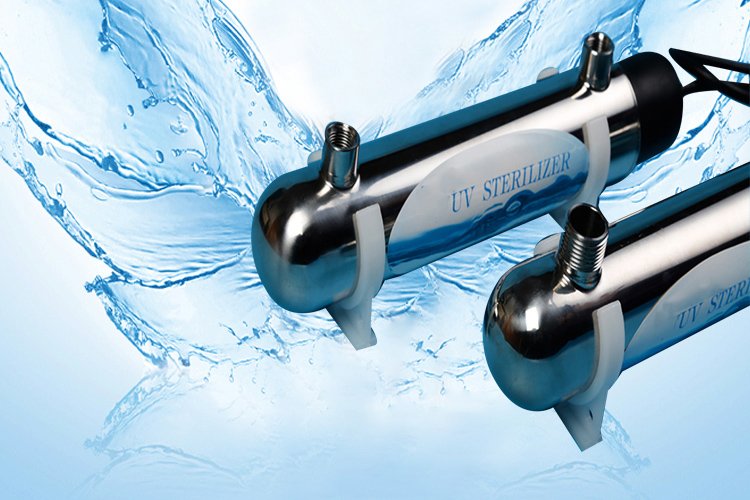

UV-4W water treatment over - flow ultraviolet sterilizer
Features
- Overflow ultraviolet sterilizer
Product characteristics
- The ultraviolet sterilizer is made of 304SS# stainless steel inside and outside the main body, and polished inside and outside the main body to strengthen the ultraviolet radiation intensity. It is assembled with high-purity quartz bushing. With the special ultraviolet lamp tube for water treatment, it has strong sterilization ability, long service life, stable and reliable operation, and its sterilization efficiency is ≥99%, and its service life is 8000 hours.
Application field
- Has been widely used in water dispenser, household water purifier, beverage equipment disinfection and other fields.
| Model | Flow rate | UV LAMP | Inlet / Outlet | Size(mm) | Lamp lifetime | Material |
|---|---|---|---|---|---|---|
| UV-4W | 0.3G | 4W*1 | 1/4” BSP Female | 176*51*51 | 8000 | 304SS |
| UV-10W | 0.5G | 10W*1 | 1/4” BSP Female | 236*51*51 | 8000 | 304SS |
| UV-12W | 1G | 12W*1 | 1/4” BSP Female | 300*51*51 | 8000 | 304SS |
| UV-16W | 2G | 16W*1 | 1/2” BSP Male | 330*63*63 | 8000 | 304SS |
| UV-25W | 6G | 25W*1 | 1/2” BSP Male | 550*63*63 | 8000 | 304SS |
| UV-30W | 8G | 30W*1 | 3/4” BSP Male | 869*63*63 | 8000 | 304SS |
| UV-55W | 12G | 55W*1 | 3/4” BSP Male | 910*63*63 | 8000 | 304SS |
| UV-110W | 24G | 55W*2 | 1.0” BSP Male | 910*110*110 | 8000 | 304SS |
| UV-165W | 36G | 55W*3 | 1.5” BSP Male | 910*135*135 | 8000 | 304SS |
| UV-220W | 48G | 55W*4 | 1.5” BSP Male | 910*135*135 | 8000 | 304SS |

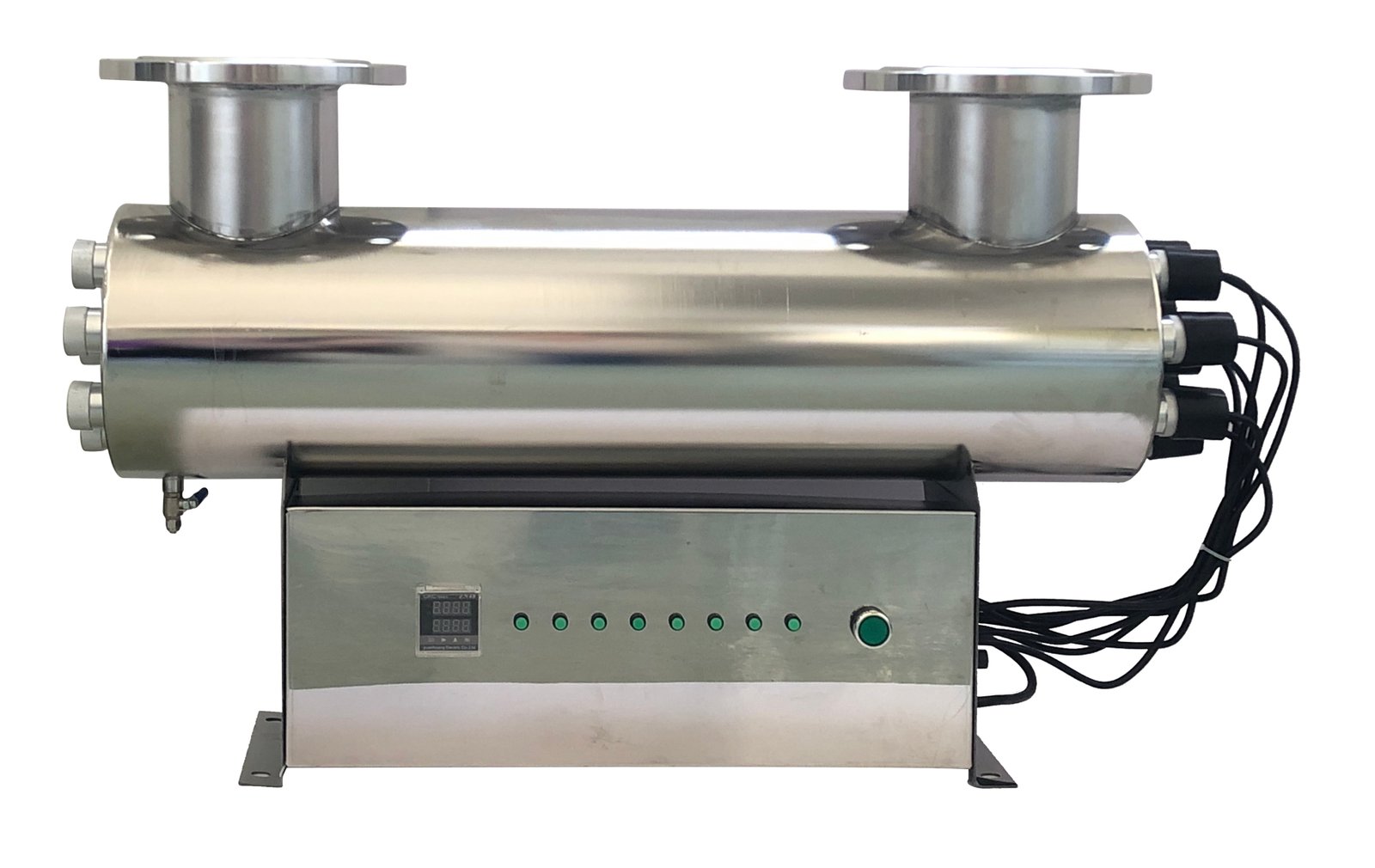

UV-960W high power sterilizer with electric control box
Features
- UV-960W high power sterilizer with electric control box
